ECFANCONTROL

Designed for manual speed control of EC fans using a 0-10VDC control signal, this module provides a simple and reliable solution for EC fan speed adjustment in commercial and residential applications.

Suitable for installations requiring local wall-mounted speed control, the module includes a switched faceplate and is compatible with a range of common switch plate systems.

Specifications

• Manual 0-100% speed control
• Suitable for EC fans with 0-10VDC control signal
• Minimum and maximum speed trimmers
• Accepts +10VDC supply and ground from EC fan
• Outputs analogue (0-10VDC) signal to fan speed control input
• Includes 10A 250VAC rated switch
• Suitable for controlling fan power supply or 24V on/off circuit
• Compatible with PDL (600 and Iconic series), HPM, and Clipsal switch plates using supplied adaptors
• Additional low-voltage control capability up to 30VDC (4-20mA, max 0.5W), including some downlight control applications.

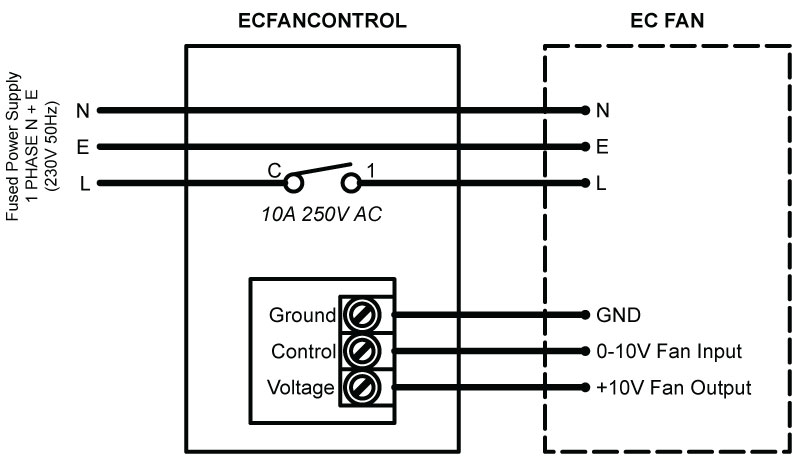

EC Fan Wiring Diagram:
