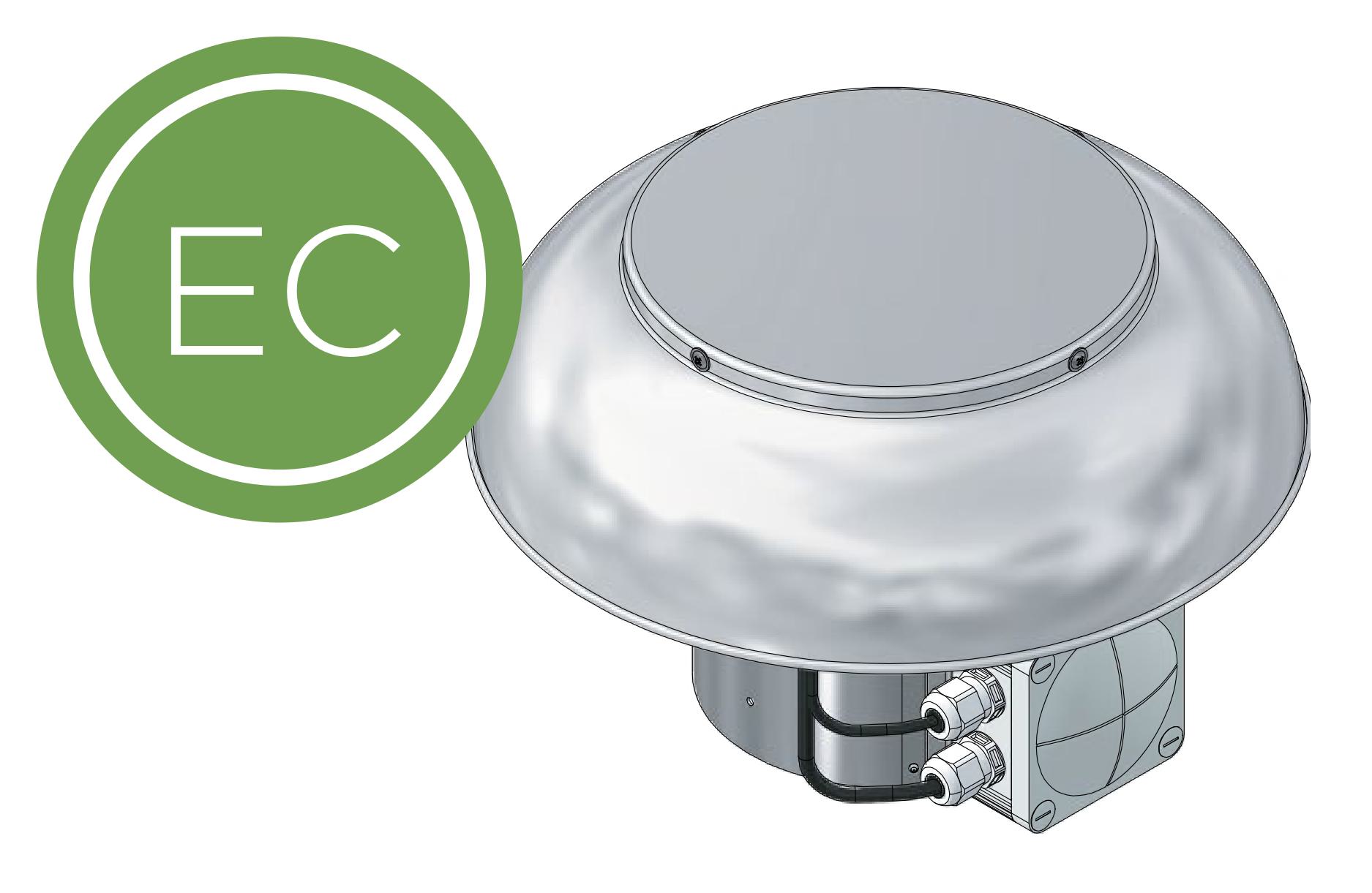

The Monica EC roof-mounted fan combines a compact, low-profile design with the efficiency of EC motor tehnology. Mounted within the external cowl, the fan delivers reliable airflow with reduced internal nouse and minimal impact on the roofline.
Application
Designed for roof-mounted exhaust ventilation in residential and commercial buildings. Suitable for kitchens, bathrooms, and other humid spaces where quiet operation and minimal roof penetration are required. Ideal for low-profile installations where visual impact must be kept to a minimum.
Features / Benefits
- Compact roof-mounted design with fan located in the external cowl for quieter operation
- High-efficiency EC motor for reduced energy consumption and precise airflow control
- Backward curved centrifugal impeller provides strong airflow against system resistance
- Operates with a 0-10 V DC control signal (controller not included), suitable for demand control and BMS integration
- Constructed from Aluminium 5005 with reinforced polypropylene terminal box (IP66, UV resistant)
- High-quality plastic impeller for durable, efficient operation
- Simple installation by flashing through roof sheeting and securing with screws
- Accesible design allows removal and servicing with only one or two screw
- Suitable for ambient temperatures from -20 Degrees Celsius to +60 Degrees Celsius
- 24-month warranty and manufactured to international efficiency and acoustic standards
| MON150EC - OTHER |
| Voltage (V) | Single Phase (230V) |
| Frequency (Hz) | 50 |
| Power (W) | 105 |
| Current (A) | 0.73 |
| Speed (rpm) | 3570 |
| Sound pressure level dB(A) @ 3m (Inlet Side) | 56 |
| Sound pressure level dB(A) @ 3m (Outlet Side) | 60 |
| Minimum Air Temperature (Degrees Celsius) | -20 |
| Maximum Air Temperature (Degrees Celsius) | +60 |
